Roofing and Cladding screws and accessories

Teepee Products Ltd                                        Telephone 0118 9757776

A leading manufacturer of the nylon Bi-hex cladding screw and home of the tek screw since 1994

www.claddingscrews.co.uk

PIPE FLASHINGS

All prices are exclusive of VAT

PREFERENTIAL PRICE LIST

DEKTITE COMBO

Flash over or around. Use as standard flashing or when access to top of pipe is not possible cut and fit around pipe and join with clips.

DEKSTRIP

Where a standard Combo can not be used on larger square/rectangular or round pipework, ductwork, skylights, chimneys, and bullnose or curved roofing profiles

DEKTITE® COMBO

Pipe Flashings

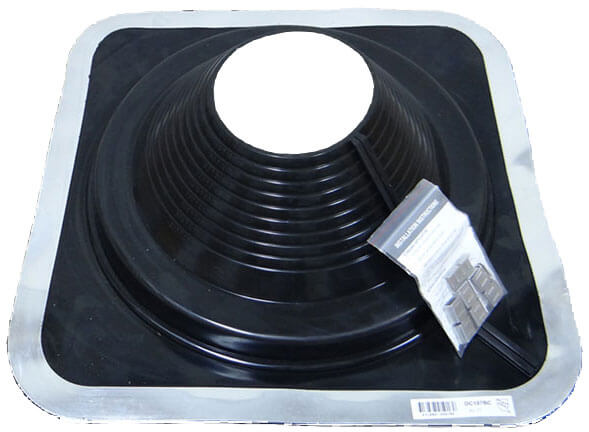

Black EPDM  for cold pipes

Withstand constant temperatures of -50° to 115° and up to 150° intermittently

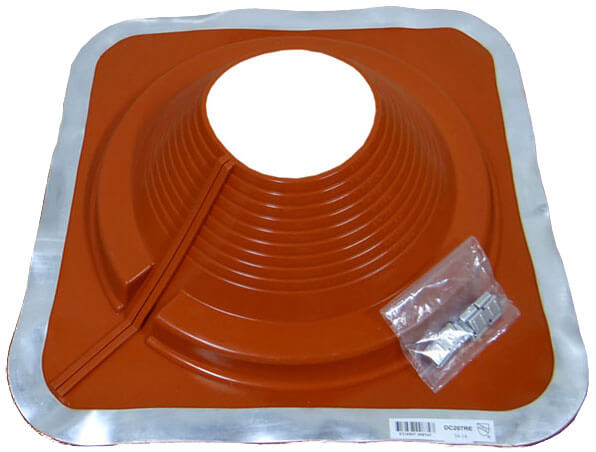

Red SILICONE for hot pipes

Withstand constant temperatures of -50° to 200° and up to 250° intermittently

If in doubt use a red SILICONE

For square or rectangular pipes add dimensions of all four sides and divide by 3.14

Use a Combo on the “diamond” or bias for enlarged holes and penetrations where damming could be a problem.

Always fit retrofit joints on the downside of flashing.

EPDM BLACK FOR COLD PIPES

PIPE DIAMETER (mm)   0-40° PITCH

BASE SIZE (mm)

CODE

PRICE EACH

NO. OF CLIPS FOR RETROFIT

5-127mm

218 x 218

DCC-3

£9.11

4

75-175mm

285 x 285

DCC-4

£11.77

4

108-190mm

365 x 365

DCC-5

£13.84

6

125-230mm

365 x 365

DCC-6

£16.58

6

150-280mm

454 x 454

DCC-7

£25.76

8

175-330mm

454 x 454

DCC-8

£30.69

8

240-503mm

685 x 685

DCC-9

£61.09

12

350-760 0-6° PITCH

350-660 6-15° PITCH

965 x 995

DCC-10

MAXI

£223.06

12

EPDM BLACK FOR SQUARE PIPES

5-125mm

216 x 216

DCSQ-3

£10.43

4

Specially designed for square pipes in Standard or Retrofit applications

SILICONE RED FOR HOT PIPES

PIPE DIAMETER (mm)   0-40° PITCH

BASE SIZE (mm)

CODE

PRICE EACH

NO. OF CLIPS FOR RETROFIT

5-127mm

218 x 218

DCH-3

£15.17

4

75-175mm

285 x 285

DCH-4

£19.29

4

108-190mm

365 x 365

DCH-5

£21.76

6

125-230mm

365 x 365

DCH-6

£28.31

6

150-280mm

454 x 454

DCH-7

£44.60

8

175-330mm

454 x 454

DCH-8

£52.98

8

240-503mm

685 x 685

DCH-9

£100.13

12

350-760 0-6° PITCH

350-660 6-15° PITCH

965 x 995

DCH-10

MAXI

£332.07

12

CLIPS FOR RETROFIT APPLICATIONS

CODE

PRICE

DCCLIPBOX

£7.34 PER BOX OF 25

DCCCLIP

39p each

DEKSTRIP® FLASHING



GREY TPE

WIDTH

LENGTH

CODE

PRICE PER ROLL

235mm

10m

DSTRIP235

£183.24

450mm

15m

DSTRIP450

£329.87

Ideal for flashing around larger pipes and ductwork.

The TPE rubber strip can be cut or joined and used in applications where standard flashings are not suitable.

INSTALLATION

 Cut Combo to pipe size as marked on flashing.

 You may also need:

CODE

DESCRIPTION

PRICE

Low modulus silicone clear

MASILCLEAR
SILICONE MASTIC LM CLEAR 310ML
£2.20 EA

Fixings

T3916BW
14X32 HWH GASH PT C/W 16MM BW
£3.75 PER 100

Caps

516SILVER
5/16X16 SILVER CAP
£1.17 PER 100

Knife

KNIFERET
RETRACTABLE KNIFE
£1.70 EA

Hybrid Silicone adhesive/sealant for high demanding jointing situations

MAGBPROCLEAR
MS HYBRID SILICONE CRYSTAL CLEAR 290ML
£5.90 EA
